BALL VALVES

Ball valves are widely used in various industries due to their versatility and reliability. They are operated by a quarter-turn motion , which allows for precise control of fluid flow. Additionally, they are known for their tight sealing when closed, making them ideal for applications where leakage must be minimized. Overall, ball valves are appreciated for their efficient and dependable performance across a range of applications

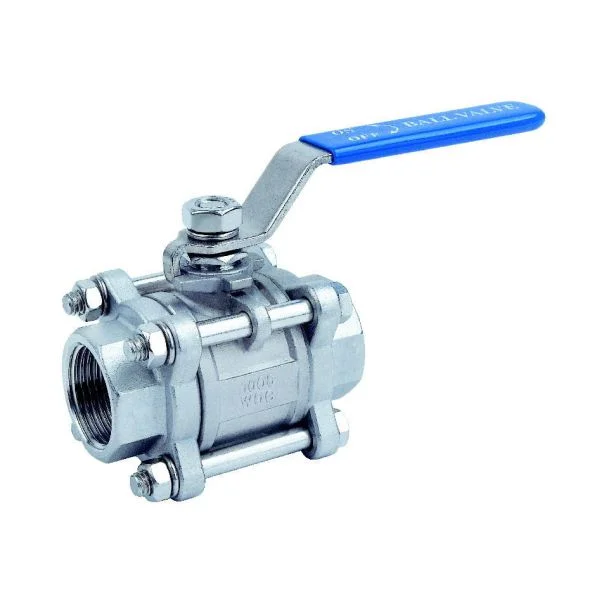

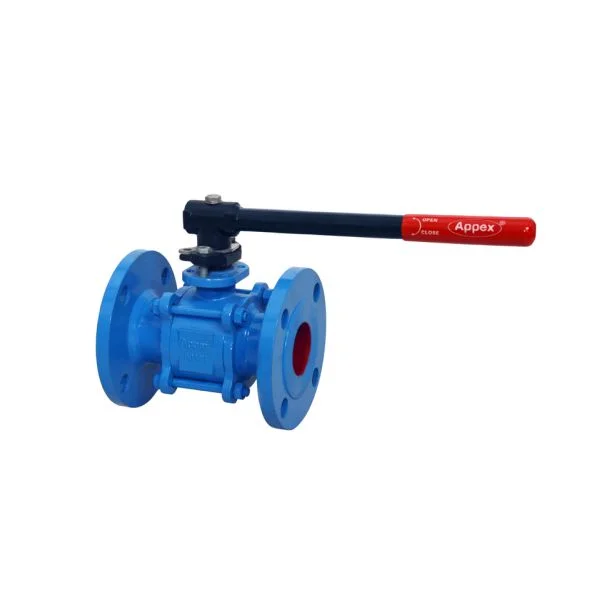

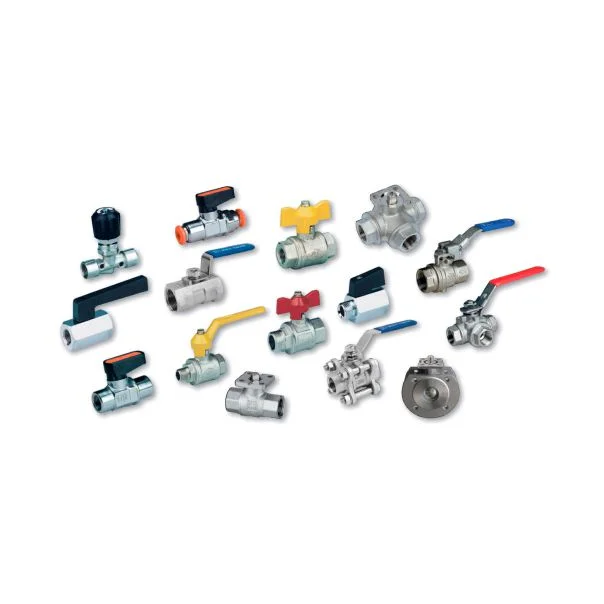

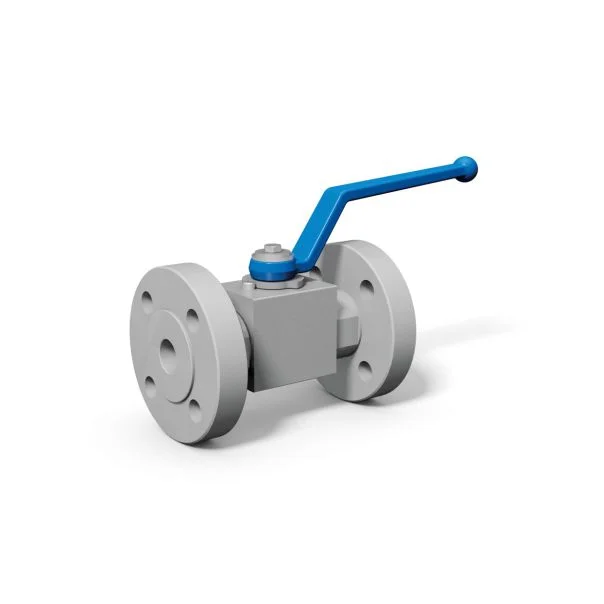

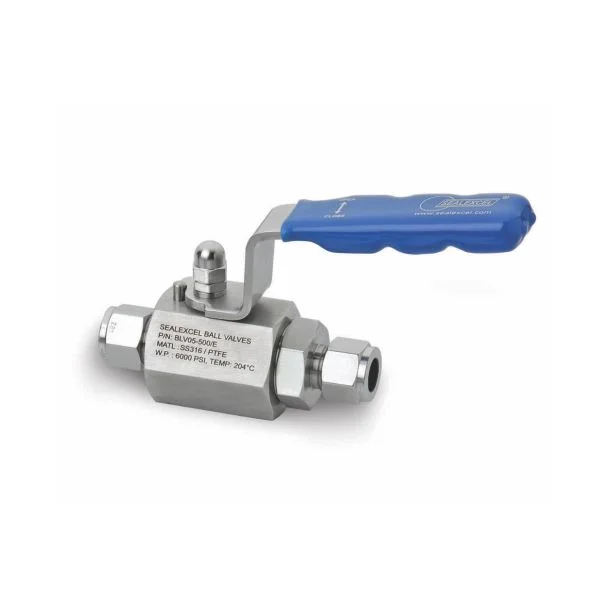

Ball Valves                      Ball Valves                                Ball Valves

Ball valve are shut-off valves and must as such always be in a completely opened or closed position.







Long life and safe operation in tough services, from cryogens to highly corrosive fluids – these are the hallmarks of our comprehensive and respected ball valve portfolio. Maximum safety and environmental protection are the driving factors in every design, achieved through corrosion-resistant materials, fire-safe testing, blowout-proof stems and tight shut-off features. Global customers can fulfill requirements from dozens of configurations built to a full range of international design and performance standards.

ApplicationIsolation
Features / BenefitFull Bore, Regular Bore
Blow Out Proof Stem
Low TorqueFloating Ball
Fire Safe Test Requirement as per API 607 & API 6FA
Ansi Class / Rating150#, 300#, 600#
Design StandardBS EN ISO 17292 , API 6D
Testing StandardAPI 598,
Size15 mm to 600 mm
MaterialsBody : A105, WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Seat : PTFE , reinforced PTFE, Nylon, etc
EndsFlanged End, Butt Weld End
OperationMannual, Pneumatic, Electric
