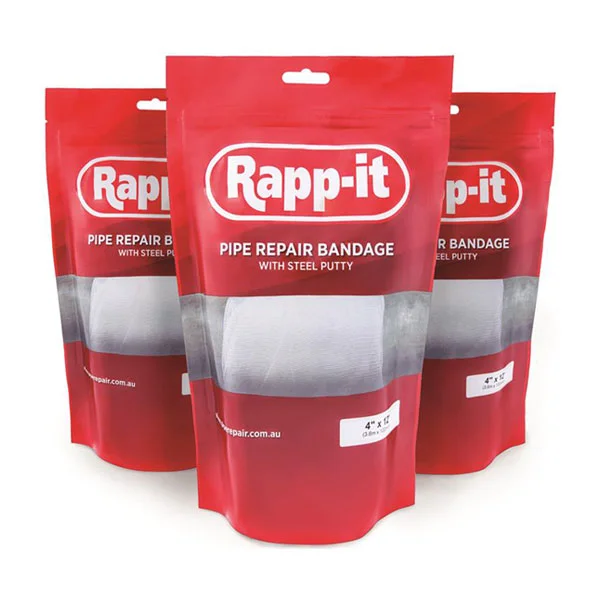

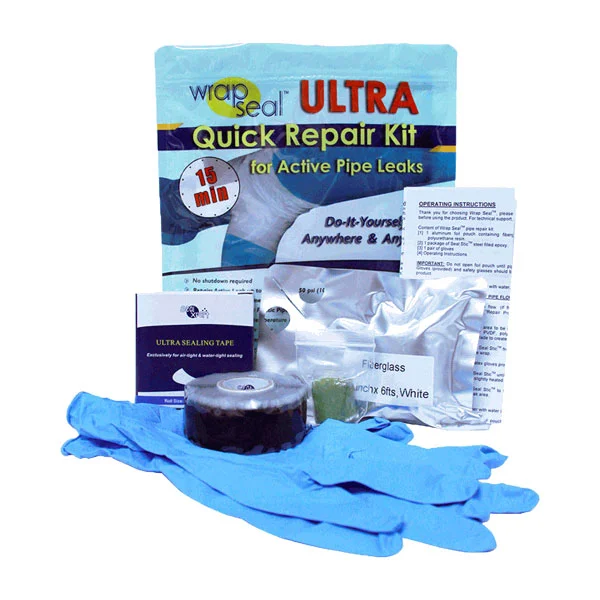

PIPE REPAIR KITS

Repairs leak in 30 minutes Applicable to pipes up to 18″ (457 mm) diameter Applicable on any metal or non-metal pipes Repairs T-joint, elbow joint, valve thread, valve body Withstand pressure up to 400 psi (28 kg/cm2) Withstand temperature up to 200 °C (392 °F) Safe for drinking water and resistant to most chemicals Reinforce and strengthen pipe after repair Permanent repair and extend service life of pipes.

APPLICABLE MATERIAL:

• Steel Copper Aluminium Galvanized steel PVC CPVC
• Stainless steel Polyethylene Polypropylene Cast-iron Concrete FRP/GRE

CHEMICAL RESISTANCE:

Oil Water (drinking water, wastewater, steam) Solvents (acetone, toluene, MEK, ethyl alcohol) Mild acids (hydrochloric acid, sulfuric acid) and alkalis Chemical (ethylene glycol, xylenes, ammonia) Hydrocarbons Bases Slurries Fuels (petroleum, diesels, gasoline) Gases (LNG, LPG) Organic salts.

WORKING TIME (FIBERGLASS TAPE):

• 1 minute at 30 °C (86 °F)

CURING TIME:

• 30 minutes at 30 °C (86 °F)
• Heat may be applied to decrease curing time
• Unopened foil pouch may be immerse in cold water prior to repair to add working and curing time.

APPLICATION:

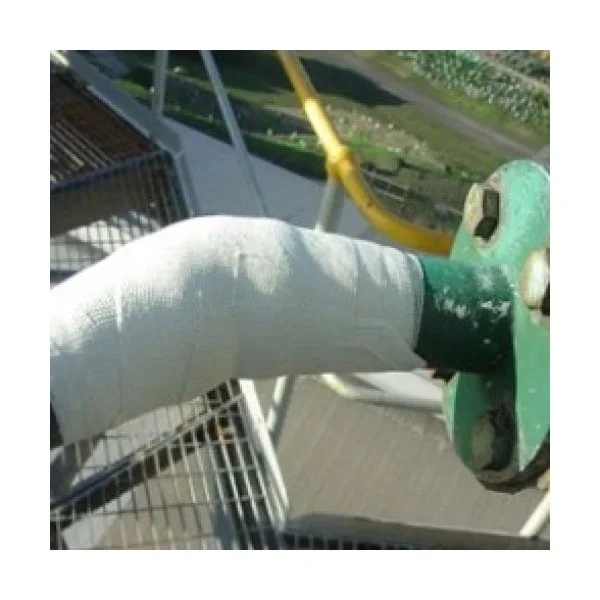

• Pipe repairs
• offline repairs
• sealing joints
• hazardous material spill control
• reinforce thinning walls
• Abrasion protection
• Structural reinforcement
• Repairs in hard to reach areas
• Underwater repairs

APPLICATION:

• Continuous – From -29 °C (-20 °F) up to 200 °C (392 °F)
• Intermittent – From 200 °C (392 °F) up to 320 °C (570 °F)

OPERATING PRESSURE:

• Recommended for pressure up to 400 psi (28 kg/cm2)
• (Results vary depending on pipe size, type of pipe, hole size, pipe content and method of application)

APPLICABLE INDUSTRIES:

• Building & amp; Facilities
• Electronics
• Industrial Processing
• Irrigation
• Oil & amp; Gas
• Chemical
• Manufacturing Plants
• Marine
• Military
• Offshore
• Food Processing
• Petrochemical
• Pharmaceutical
• Power Generation
• Pulp & Paper
• Wastewater
• Water Distribution
